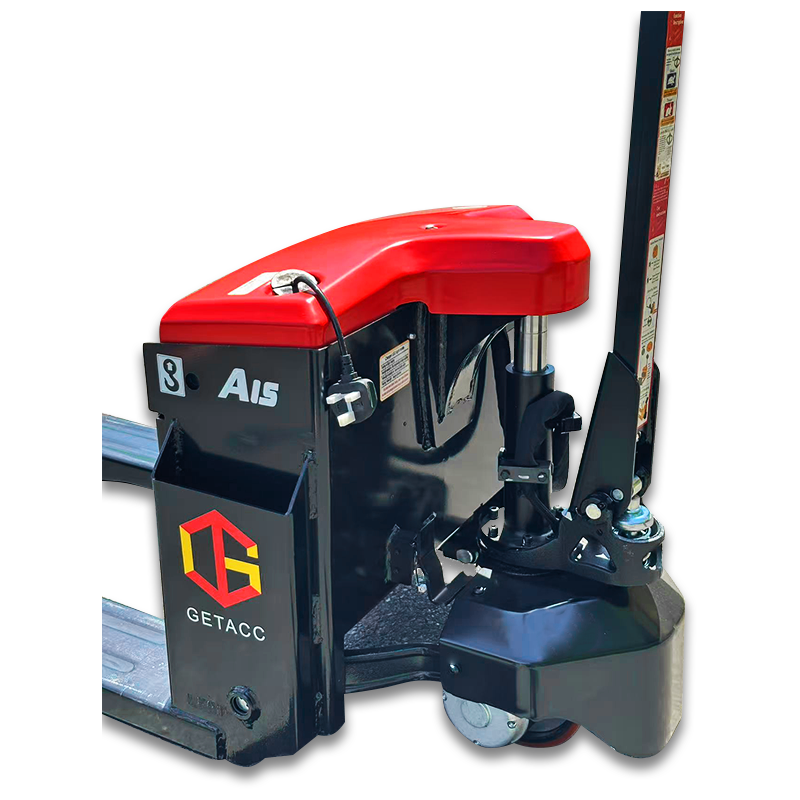

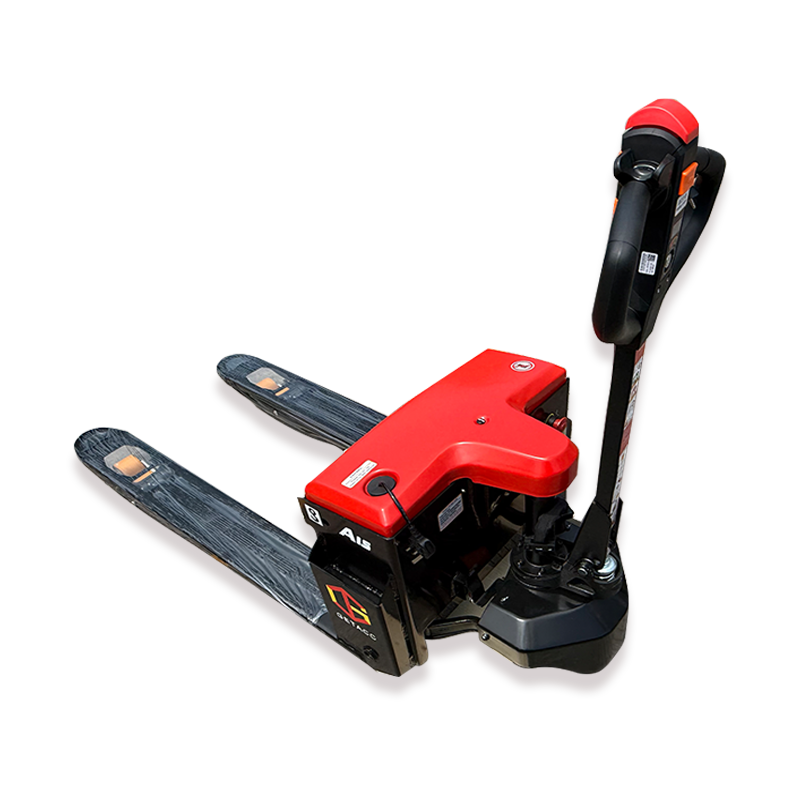

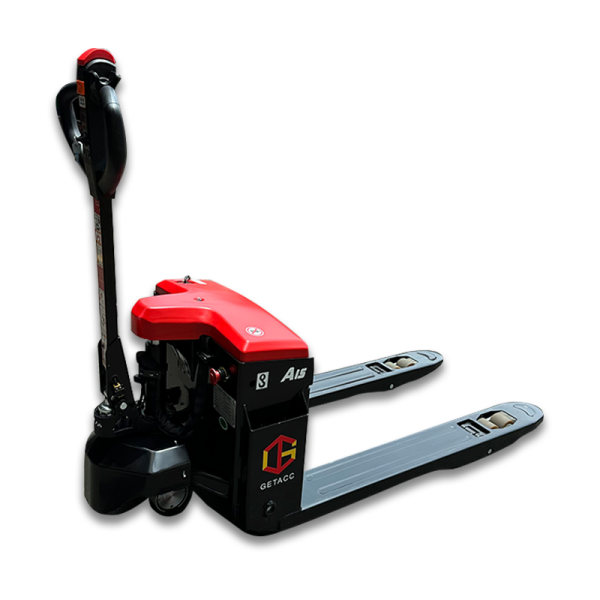

The GETACC Mini Pallet Handler represents a groundbreaking advancement in material handling technology, specifically engineered to revolutionize warehouse operations and intralogistics workflows. As a next-generation intelligent handling solution, this compact powerhouse combines robust performance with ergonomic innovation to deliver exceptional value across diverse industrial and commercial environments.
Distinguishing mark | 1.1 | Manufacturer |
| GETACC | |||
1.2 | Manufacturer’s type designition |
| CBD15-WD | CBD15-WD-I | CBD20-WD | CBD20-WD-I | |
1.3 | Drive: electric (battery type, mains, …), diesel, petrol, fuel gas |
| Electric | Electric | Electric | Electric | |
1.4 | Operator type: hand, pedestrian, standing, seated, order-picker |
| Pedestrian | Pedestrian | Pedestrian | Pedestrian | |
1.5 | Rated capacity/rated load | kg | 1500 | 1500 | 2000 | 2000 | |

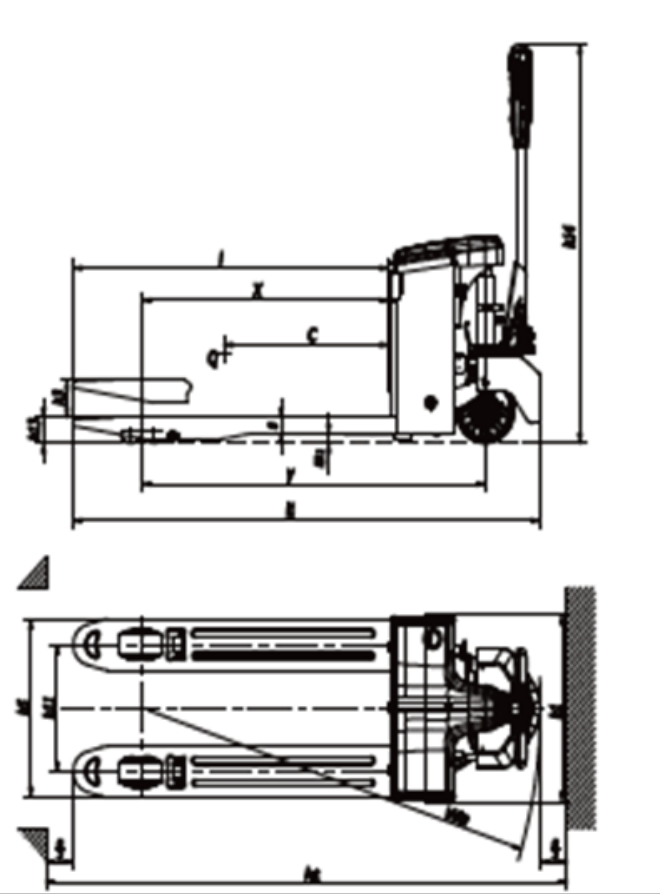

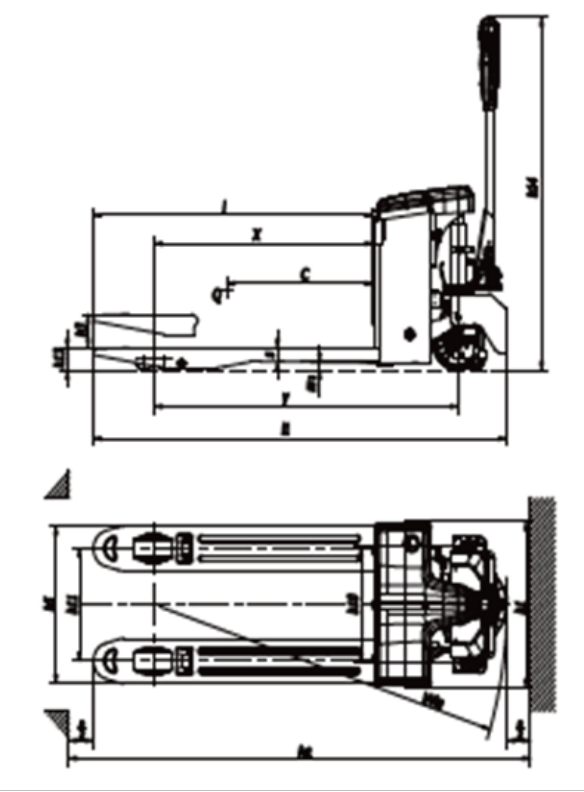

1.6 | Load centre distance | c (mm) | 600 | 600 | 600 | 600 | |
1.8 | Load distance, centre of drive axle to fork | x (mm) | 905 | 905 | 905 | 905 | |
1.9 | Wheelbase | y (mm) | 1175/1248 | 1175/1248 | 1175/1248 | 1175/1248 | |
Weight | 2.1 | Service weight | kg | 220/227 | 180/187 | 225/232 | 190/197 |
Tyres, chassis | 3.1 | Tyres: solid rubber, superelastic, pneumatic, polyurethane |
| PU | PU | PU | PU |
3.2 | Tyre size, front |
| Φ210×70 | Φ210×70 | Φ210×70 | Φ210×70 | |
3.3 | Tyre size, rear |
| Φ80×64 | Φ80×64 | Φ80×64 | Φ80×64 | |
3.5 | Wheels, number front/rear (× = driven wheels) |
| 1x/4 | 1x/4 | 1×2/4 | 1×2/4 | |
3.6 | Tread, front | b10(mm) | / | / | 410 | 410 | |
3.7 | Tread, rear | b11(mm) | 400/520 | 400/520 | 400/520 | 400/520 | |
Dimensions | 4.4 | Lift | h3(mm) | 120 | 120 | 120 | 120 |

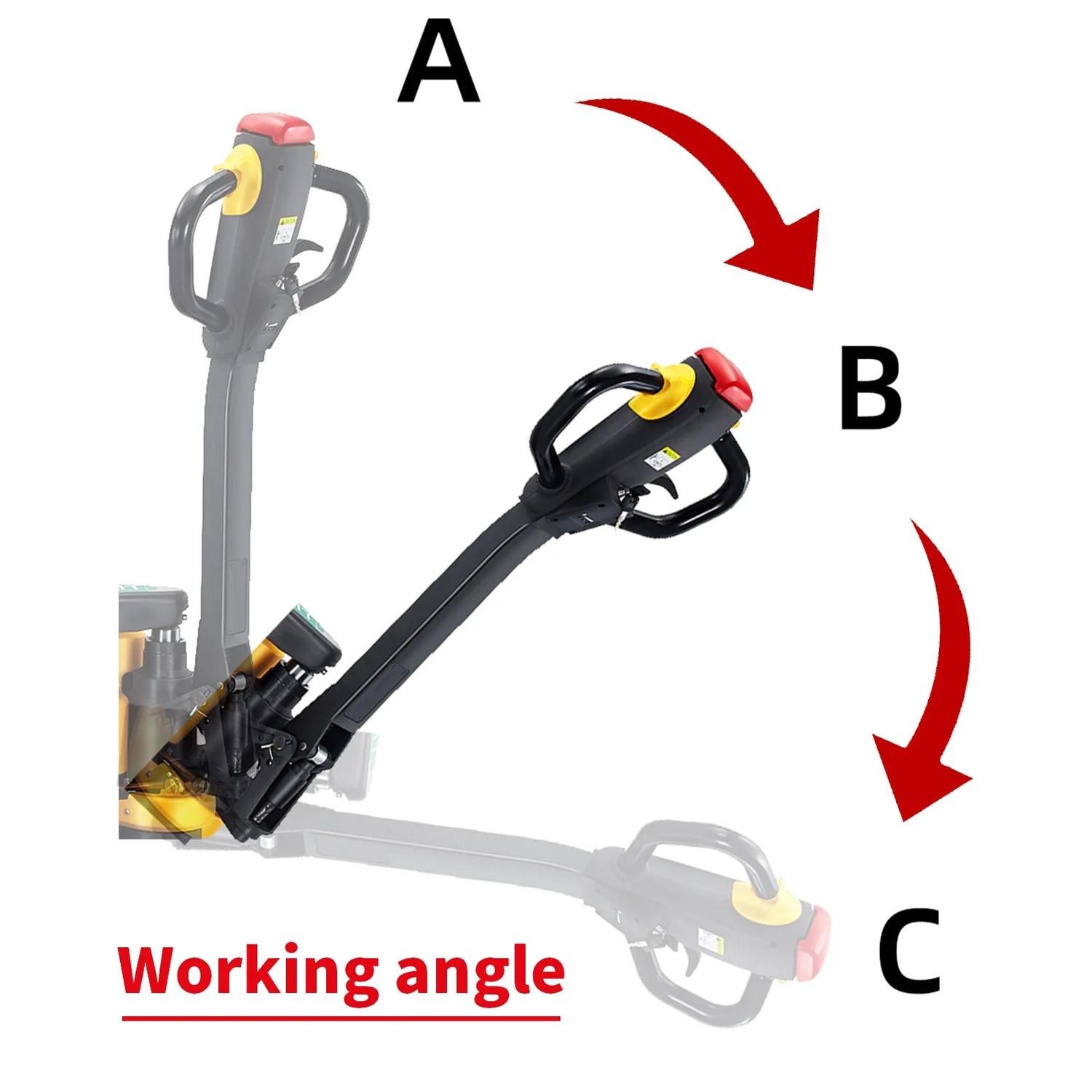

4.9 | Height drawbar in driving position min./max. | h14(mm) | 650/1255 | 650/1255 | 650/1255 | 650/1255 | |
4.15 | Height, lowered | h13(mm) | 80 | 80 | 80 | 80 | |
4.19 | Overall length | l1(mm) | 1700 | 1700 | 1700 | 1700 | |
4.21 | Overall width | b1/b2(mm) | 590/680 | 590/680 | 590/680 | 590/680 | |
4.22 | Fork dimensions DIN ISO 2331 | s/e/l(mm) | 50/160/1150 | 50/160/1150 | 50/160/1150 | 50/160/1150 | |
4.25 | Fork spread | b5(mm) | 560/680 | 560/680 | 560/680 | 560/680 | |
4.32 | Ground clearance, centre of wheelbase | m2(mm) | 30 | 30 | 30 | 30 | |
4.34.1 | Aisle width for pallets 1000 × 1200 crossways | Ast(mm) | 1553①② | 1553①② | 1553①② | 1553①② | |
4.34.2 | Aisle width for pallets 800 × 1200 lengthways | Ast(mm) | 1753①③ | 1753①③ | 1753①③ | 1753①③ | |
4.35 | Turning radius | Wa(mm) | 1374① | 1374① | 1374① | 1374① | |
Performance data | 5.1 | Travel speed, laden/unladen | km/h | 4.5/4.8 | 4.5/4.8 | 4.5/4.8 | 4.5/4.8 |
5.2 | Lift speed, laden/unladen | m/s | 0.045/0.055 | 0.045/0.055 | 0.045/0.055 | 0.045/0.055 | |
5.3 | Lowering speed, lade/unladen | m/s | 0.06/0.04 | 0.05/0.04 | 0.06/0.04 | 0.05/0.04 | |
5.8 | Max. gradeability, laden/unladen | % | 6/16 | 6/16 | 6/16 | 6/16 | |
5.10 | Service brake |
| Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | |
Electric Engine | 6.1 | Drive motor rating S2 60 min | kW | 0.75 | 0.75 | 0.9 | 0.9 |
6.2 | Lift motor rating at S3 15 % | kW | 0.8 | 0.8 | 0.8 | 0.8 | |
6.4 | Battery voltage/nominal capacity | (V)/(Ah)or kWh | 24/85 | 24/40 | 48 /56 | 48/20 | |
6.5 | Battery weight | kg | 24×2 | 11 | 13.2×4 | 11 | |
Note: ① Fork lowering +76mm; ② According to VD12198 standard +631mm; ③ According to VD12198 standard +323mm
/ The mini pallet handler adopts a specialized industrial
exterior design. The vehicle has a smooth vivid profile, a compact shape and a fully ergonomic design, and follows the exterior design trend.
/ It is 90% made of steel plates that are molded by stamping, so the exterior is robust, durable and high-grade, and meets environmental protection requirements.

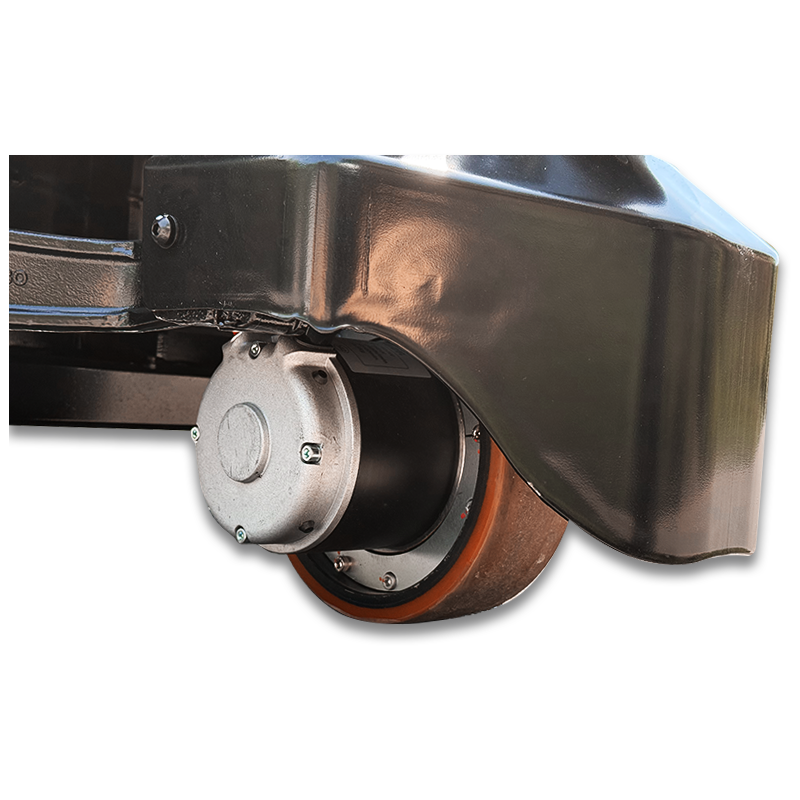

/ With high power and a rated load of 1.5–2 tons to meet the handling needs of most customers. / The 1.5t handler uses a DC permanent magnet brushed walking motor and a DC permanent magnet brushed control system. / The 2t handler uses a DC permanent magnet brushless walking motor and a DC permanent magnet brushless control system. / The vehicle has a regenerative braking function and provides protection to prevent sliding down a ramp. / All parts such as the motor controller, hydraulic pump station, switches, connectors, etc. are reliable products.

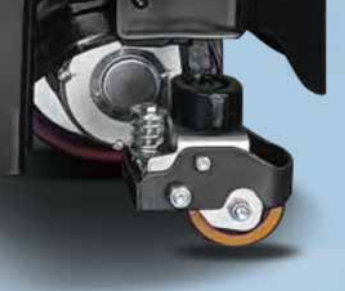

/ The four-point design and two auxiliary wheels make steering safer, as well as more stable and reliable. / Optimized mast which is stable, reliable and subject to a small force. / The whole system uses domestic quality waterproof connectors, and all wires and cables have reliable protection, which greatly improves the reliability of the electrical system. / With a low noise and low vibration hydraulic power unit to enable stable and reliable lifting and descending. / The stamped fork with higher strength and impact resistance, and guided fork prongs, further improve operation eficiency. / The interlockswitch is a non-contact proximity switch with high reliability. / The integrated iron wheel casing can protect the vehicle body from external impact well.
/ The battery indicator can duly prompt the user to charge. / Hood convenient to open, enabling a clear view of the components and easy maintenance of the truck. / With all spindles equipped with lubricated sleeves to facilitate maintenance and a long service life. / The joystick assembly can be removed separately, and thereby can be maintained and packed easily.

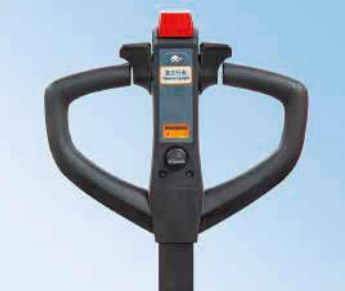

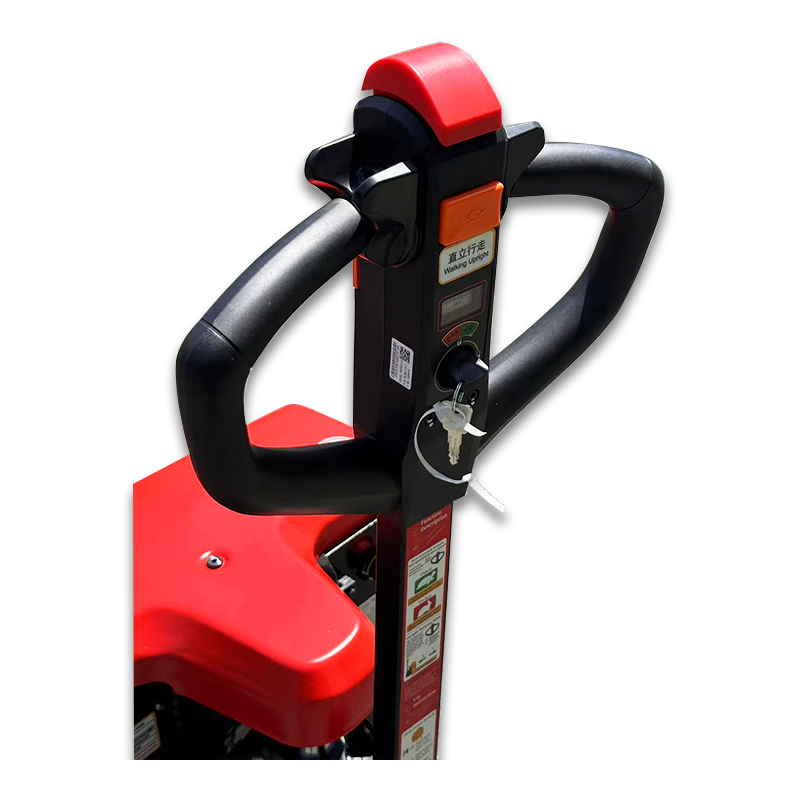

/ With the reliable, compact and stylish modular joystick with internal parts that can be replaced separately, all operations can be completed with one hand. / The optimized body structure enables the forklift to have an excellent operating view. / Being compact, lightweight and flexible,it has a function of upright driving and can be operated very easily. It can be operated in narrow aisles, e.g., in a container. / With a guide device added, the fork provided for the standard configuration is 80mm in height and has prong tips inclined at 2 degrees to access the pallet (including the closed pallet) more easily. / Removed from the front, the lead-acid battery can be replaced easily and quickly, and meets the need of long operation.

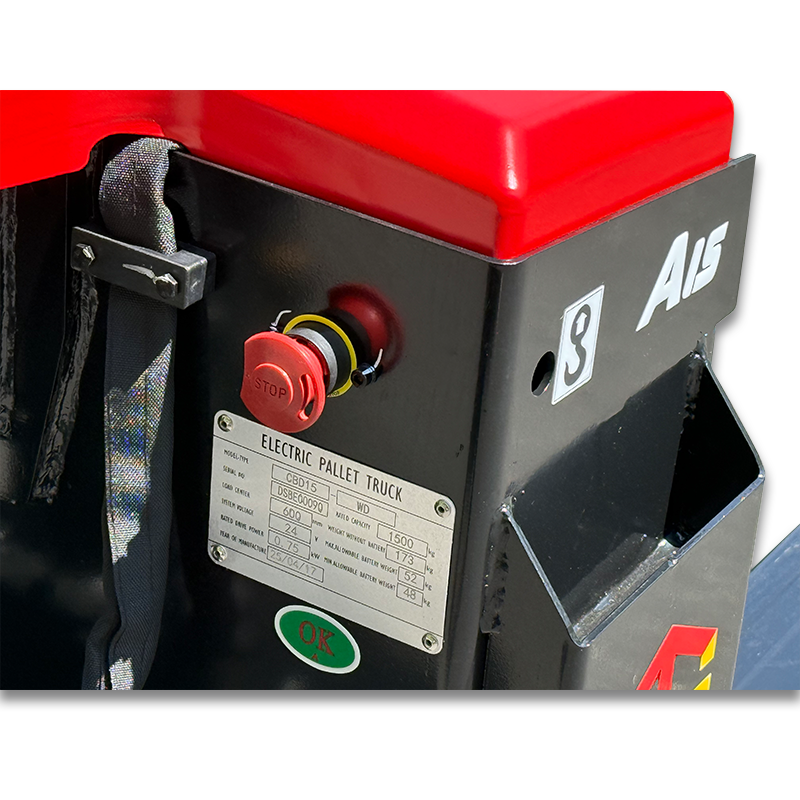

/ With the functions of release braking, reversing braking and emergency braking to ensure safe driving. / Anti-rollback function to ensure safe operation. / Emergency reverse button on the tiller head able to efectively avoid harms to the driver in case of any emergency during backward driving. / With the dual protection by the electronic lifting limit and mechanical limitswitches that are provided for the standard configuration, the impact caused by lifting to the top can be avoided and the safety of the goods can be ensured.
