Metal casting is one of the most important and enduring manufacturing techniques in human history. It has shaped civilizations, powered industries, and continues to drive innovation in the modern world. At its core, metal casting involves melting metal, pouring it into a mold, and allowing it to solidify into a specific shape. This simple yet powerful concept has enabled the production of everything from ancient bronze tools to precision aerospace components.
Unlike many modern manufacturing methods that require extensive machining or assembly, metal casting allows manufacturers to create complex, durable, and precise components in a single process. It is cost-effective, adaptable, and suitable for both small and large-scale production. Over the centuries, advances in metallurgy, mold-making technology, and engineering design have transformed metal casting from a manual craft into a sophisticated industrial process.
What is Metal Casting?

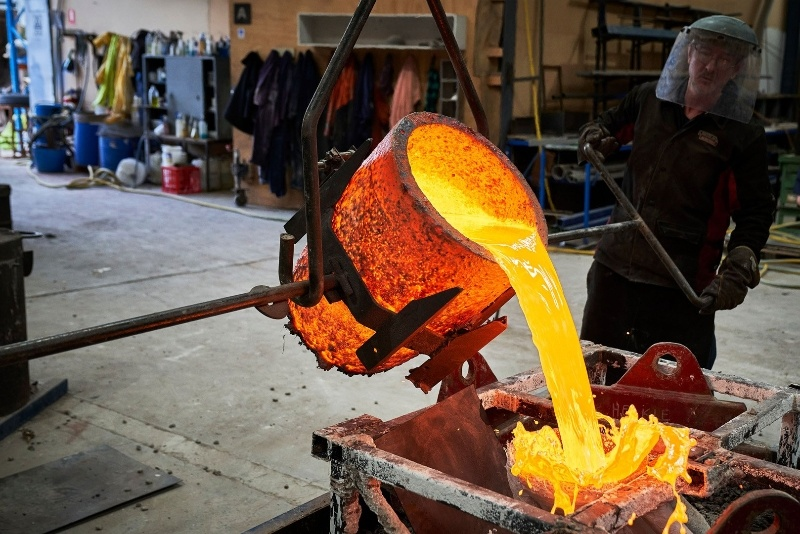

Metal casting is a manufacturing process in which molten metal is poured into a mold and allowed to cool and solidify into the desired shape. Once the metal solidifies, the mold is removed, leaving a finished or near-finished part that can be further machined or used as is.
This process is particularly useful for producing complex shapes and large components that are difficult to make using other manufacturing methods like forging or machining. It’s widely used in industries such as automotive, aerospace, energy, construction, and heavy machinery.
The molds used in casting can be made of sand, metal, or other materials depending on the application. Different casting methods are chosen based on the required precision, production volume, and type of metal.
Key characteristics of metal casting include:
- Ability to produce complex geometries
- Suitable for both ferrous and non-ferrous metals
- Cost-effective for large-scale production
- Flexibility in size and design
History of Metal Casting
The history of metal casting stretches back thousands of years. It is one of humanity’s earliest technological achievements, playing a pivotal role in the development of civilizations.
Early Beginnings
The earliest evidence of metal casting dates back to around 3200 BCE in Mesopotamia and ancient Egypt. Bronze was among the first metals to be cast, used for tools, weapons, and decorative objects. The lost-wax casting technique, which originated around this time, allowed artisans to create intricate shapes with remarkable detail.
Advancements Through Civilizations
By the time of the Shang Dynasty in China (1600–1046 BCE), bronze casting had become highly advanced. Massive bronze vessels and intricate ceremonial artifacts were produced with sophisticated mold-making methods. Similarly, in ancient Greece and Rome, casting was used to make statues, coins, and everyday items.
Industrial Revolution
The Industrial Revolution of the 18th and 19th centuries transformed metal casting from a craft-based activity into an industrial process. With the invention of steam engines, better furnaces, and mass production techniques, casting became more precise and efficient. Foundries grew rapidly, producing parts for machinery, transportation, and construction.
Modern Era
Today, metal casting is a highly advanced process supported by modern technology. Computer-aided design (CAD), simulation software, and automated molding have increased precision, reduced costs, and expanded applications. While the basic principles remain the same, the methods have become more refined, allowing for high-volume production of complex parts.
Types of Metal Casting
Different types of metal casting methods have been developed to meet diverse production needs. The choice of method depends on factors such as material, complexity, quantity, and required properties of the final product.
Sand Casting

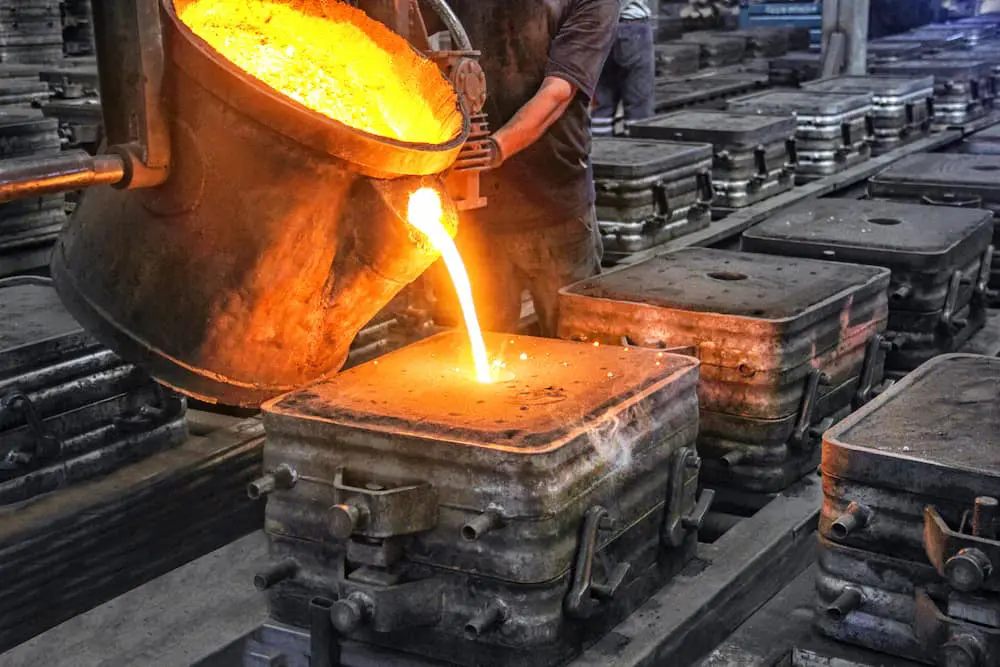

Sand casting is the most common and traditional method. A pattern of the part is pressed into sand to create a mold. Molten metal is poured into the cavity and allowed to cool. This method is suitable for large components and low to medium production volumes. It’s also cost-effective and flexible in terms of shape and size.
Die Casting
In die casting, molten metal is forced under pressure into a steel mold (die). This method produces high-precision parts with smooth surfaces. It is ideal for mass production and is commonly used with non-ferrous metals such as aluminum, zinc, and magnesium.
Investment Casting

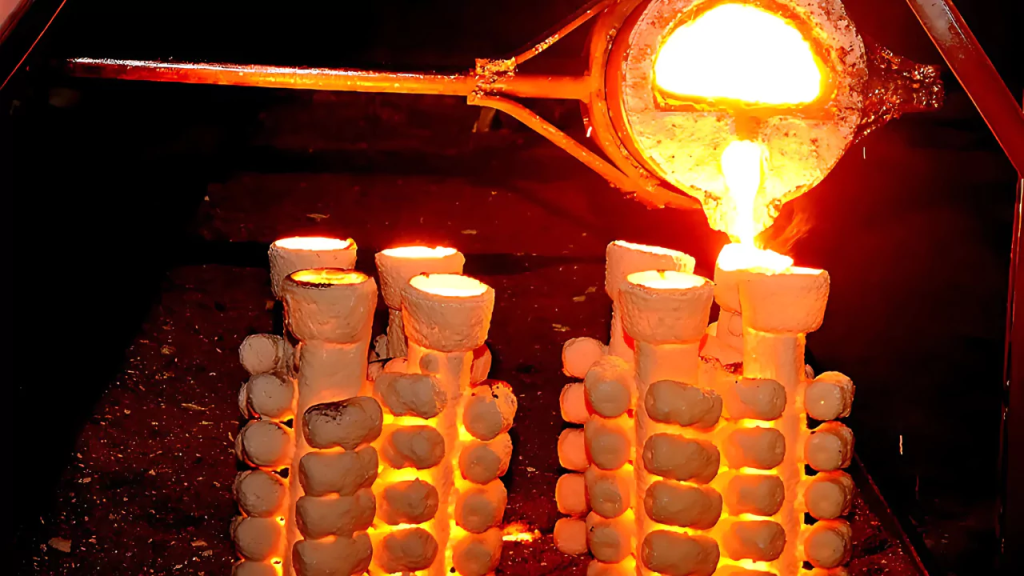

Investment casting, or lost-wax casting, involves creating a wax model of the part, coating it with a ceramic shell, and then melting away the wax. Molten metal is poured into the ceramic mold. This process yields parts with excellent surface finishes and dimensional accuracy, often used in aerospace and medical industries.
Permanent Mold Casting

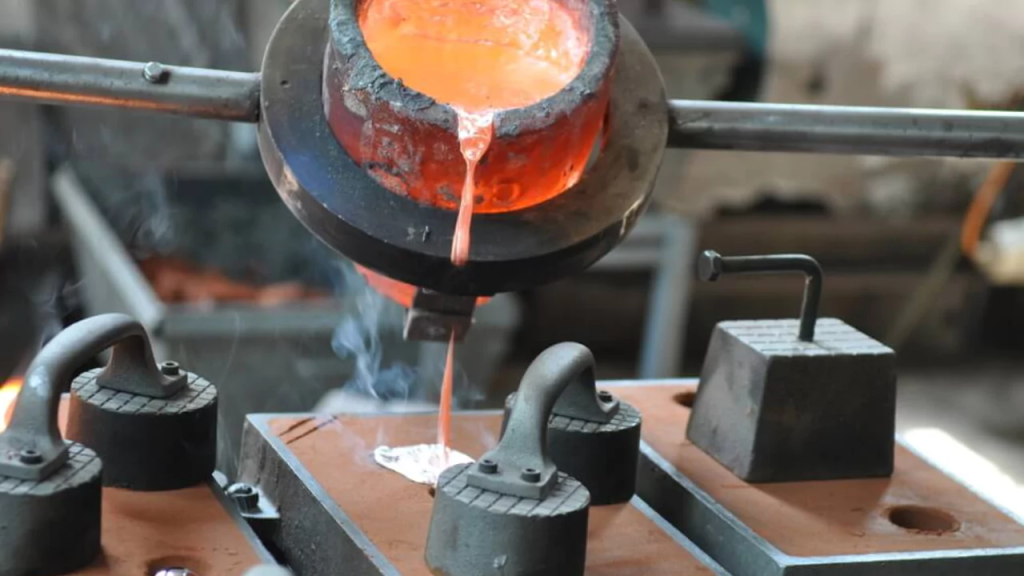

This method uses reusable metal molds rather than sand or wax. It provides better dimensional accuracy and surface finish compared to sand casting. It’s often used for medium to high production volumes and is compatible with non-ferrous metals.
Centrifugal Casting
Centrifugal casting involves pouring molten metal into a rotating mold. The centrifugal force distributes the metal evenly, resulting in parts with high density and minimal porosity. It is commonly used to produce pipes, cylinders, and other symmetrical components.
Lost Foam Casting
Lost foam casting is similar to investment casting, but it uses foam patterns instead of wax. When molten metal is poured into the mold, the foam vaporizes and is replaced by metal. This method reduces the need for cores and simplifies mold-making.
What are the Metal Casting Processes?
Metal casting involves a series of well-defined steps to ensure that the final product meets quality and dimensional requirements.
1. Pattern Making
A pattern is a replica of the final product. It is made from materials like wood, plastic, or metal. Patterns must account for shrinkage that occurs during metal cooling.
2. Mold Preparation
The mold is created using sand, metal, or ceramic. In sand casting, for example, the pattern is placed in sand and packed tightly to form the cavity. In investment casting, the wax model is coated with ceramic.
3. Melting
The metal to be cast is melted in a furnace. The type of furnace used depends on the metal’s melting point and production volume. Common furnaces include cupola, induction, and electric arc furnaces.

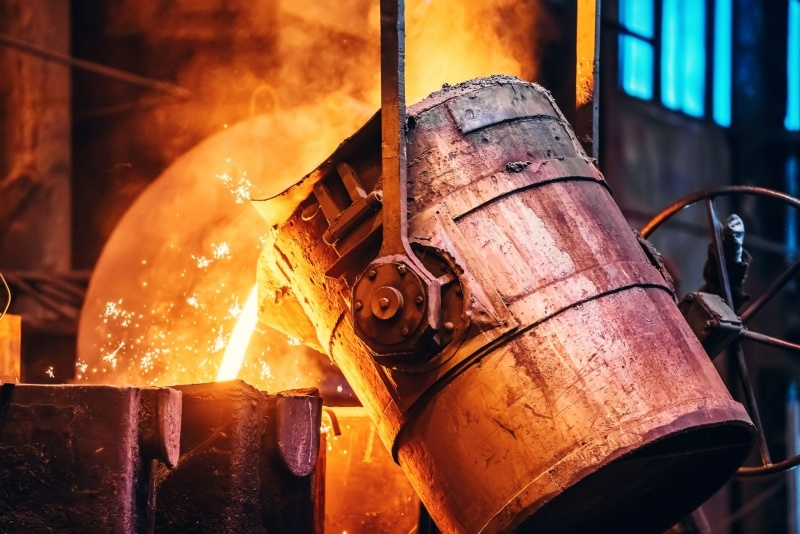

4. Pouring
The molten metal is carefully poured into the mold cavity. The pouring rate and temperature are controlled to avoid defects such as porosity and misruns.
5. Solidification and Cooling
As the metal cools, it solidifies and takes the shape of the mold. Controlled cooling is crucial for achieving the desired microstructure and mechanical properties.
6. Shakeout and Mold Removal
Once the casting has solidified, the mold is removed. In sand casting, the sand is broken away. In investment casting, the ceramic shell is cracked off.
7. Cleaning and Finishing
The casting is cleaned to remove any remaining mold material. Additional processes like grinding, machining, or heat treatment may be applied to achieve the required finish and dimensions.
8. Inspection and Quality Control
The final casting is inspected for dimensional accuracy, surface finish, and internal defects. Non-destructive testing methods are often used to ensure reliability.
What are the Advantages of Metal Casting?
Metal casting offers several advantages that make it an attractive manufacturing process for many industries.
Complex Geometries
Metal casting allows for the production of parts with intricate shapes and internal structures that would be difficult or impossible to manufacture through machining or forging alone.
Wide Material Choice
Almost any metal can be cast, including steel, iron, aluminum, copper, magnesium, and various alloys. This flexibility makes it suitable for a wide range of applications.
Cost-Effectiveness
For large parts or high-volume production, casting is more economical than machining. The ability to reuse patterns and molds in some methods further reduces costs.
Size Flexibility
Casting can produce components ranging from a few grams to several tons. This makes it ideal for industries such as energy and infrastructure where very large parts are required.
High Production Rate
Some casting methods, like die casting, allow for rapid production of identical components with minimal finishing.
Minimal Waste
Unlike subtractive manufacturing methods, casting uses only the amount of material needed for the part, minimizing scrap.
Applications of Metal Casting
Metal casting is used across countless industries due to its versatility and cost-effectiveness. Its applications range from everyday items to critical components in advanced technology.
Automotive Industry
Metal casting is essential in automotive manufacturing, where engine blocks, cylinder heads, brake components, and transmission cases are produced through casting. Aluminum and iron are commonly used metals.
Aerospace Industry
In aerospace, investment casting is used to create complex and lightweight components such as turbine blades and structural parts. Precision and material integrity are critical in this sector.
Construction and Infrastructure
Large cast iron and steel components like pipes, beams, and structural supports are used in construction. Casting allows for cost-effective production of robust, durable parts.
Energy Sector
The energy industry relies on cast components for turbines, valves, pumps, and generators. High-performance alloys are used to withstand extreme temperatures and pressures.
Machinery and Equipment
Casting is widely used in producing components for agricultural machinery, industrial equipment, and manufacturing systems, where durability and precision are essential.
Art and Design
Metal casting also plays a role in artistic fields. Sculptors and designers use casting to create intricate metal artworks, statues, and architectural details.
How to Test the Quality of Metal Casting?
Quality control in metal casting is essential to ensure performance, safety, and durability. A variety of testing methods are used, depending on the application and criticality of the part.
Visual Inspection
The simplest method involves examining the casting for surface defects such as cracks, shrinkage cavities, or incomplete filling. While basic, it’s an important first step.
Dimensional Inspection
Precise measurements are taken to ensure that the casting matches design specifications. Coordinate Measuring Machines (CMM) and gauges are often used.
Non-Destructive Testing (NDT)
NDT methods are used to detect internal defects without damaging the part. Common techniques include:
- Ultrasonic Testing (UT):Uses high-frequency sound waves to detect internal flaws.
- Radiographic Testing (X-ray):Provides a visual image of internal structure, revealing porosity or cracks.
- Magnetic Particle Testing:Detects surface and near-surface defects in ferromagnetic materials.
- Dye Penetrant Testing:Highlights surface cracks through capillary action.
Mechanical Testing
Tensile tests, impact tests, and hardness measurements are conducted to evaluate the mechanical properties of the casting. These tests ensure the part meets strength and performance requirements.
Metallurgical Examination
Microscopic examination of the microstructure reveals details about grain size, inclusions, and phase distribution. This helps in assessing the quality of the casting process and heat treatment.
Where to Find a Good Metal Casting Company?
Finding a reliable metal casting company is crucial for obtaining high-quality components that meet technical and performance standards. A good casting partner should have:
- Modern facilities and equipment
- Experience with different casting methods
- Strong quality control processes
- Certification and compliance with industry standards
- Good communication and customer support
For example, Fuchun Casting is an experienced metal casting company offering a variety of casting services for different industries. With expertise in precision casting and strict quality assurance, companies like this can provide dependable and efficient manufacturing solutions.
When selecting a supplier, it’s advisable to evaluate their production capabilities, check references, and, if possible, visit their facilities to assess their technology and operations firsthand.
Summary
Metal casting remains a cornerstone of manufacturing technology, combining ancient principles with modern innovation. By pouring molten metal into molds, manufacturers can produce complex, durable, and cost-effective parts for industries ranging from automotive to aerospace and beyond.
We explored the definition and history of metal casting, its various types and processes, the advantages it offers, and its many applications. Quality testing plays a key role in ensuring the reliability of cast products. Finally, choosing the right casting company—such as Fuchun Casting is essential to guarantee consistent results.
As industries continue to advance, metal casting will remain a vital and evolving technology, driving innovation in manufacturing and engineering.
