Sand casting is one of the most versatile and widely used metal casting methods in the world. Its simplicity, cost-effectiveness, and ability to create complex parts make it an essential process in industries ranging from automotive and construction to aerospace and machinery manufacturing. Whether you’re an engineer, manufacturer, or simply curious about how metal components take shape, this guide will walk you through everything you need to know about sand casting its history, processes, advantages, applications, and how to find reliable casting companies.
What is Sand Casting?
Sand casting is a manufacturing process that involves forming a mold from sand and pouring molten metal into it to create a metal part. Once the metal solidifies, the sand mold is broken away, revealing the finished casting. This technique has been used for thousands of years, and despite advancements in modern casting technologies, sand casting remains a fundamental method due to its flexibility and cost-efficiency.
At its core, sand casting is based on a simple principle molten metal takes the shape of a cavity formed in sand. However, beneath this simplicity lies an intricate blend of engineering precision, materials science, and craftsmanship. The process can be used to cast both ferrous metals (such as iron and steel) and non-ferrous metals (such as aluminum, bronze, brass, and magnesium).
A key reason for sand casting’s popularity is its ability to handle a wide range of sizes and complexities. From small precision parts to massive machine housings weighing several tons, sand casting can produce them all. The molds are typically made of silica sand mixed with binders to hold their shape during the metal pouring and cooling stages.
History of Sand Casting
The history of sand casting stretches back more than 3,000 years. The earliest records of metal casting can be traced to ancient China and Mesopotamia, where artisans used primitive sand molds to shape bronze and copper. Archaeological findings show that bronze tools, ornaments, and weapons were cast using sand molds as early as 1000 BCE.
During the Middle Ages, sand casting evolved with the advancement of metallurgy. Foundries across Europe began producing complex iron castings for church bells, cannons, and tools. However, the real transformation occurred during the Industrial Revolution in the 18th and 19th centuries. As steam engines, railways, and machinery manufacturing expanded, demand for metal castings skyrocketed. Sand casting became the go-to process for creating engine parts, machine housings, and industrial components.
By the 20th century, improvements in sand quality, binder technology, and metal pouring techniques made sand casting more precise and efficient. Modern foundries now employ advanced molding systems, pattern-making technologies, and automated sand reclamation systems. Despite the rise of newer casting methods such as die casting and investment casting, sand casting remains indispensable due to its adaptability and cost advantages.
Types of Sand Casting
While all sand casting processes share the same fundamental concept, variations exist based on the type of sand used, the molding method, and the level of automation. The main types of sand casting include:
1. Green Sand Casting
Green sand casting is the most common type of sand casting. The term “green” refers to the fact that the sand mold is used in a moist, unbaked condition. The sand is typically a mixture of silica sand, clay (bentonite), water, and additives. It offers good moldability and reusability, making it ideal for mass production of small to medium-sized parts.
Green sand casting is cost-effective and suitable for both ferrous and non-ferrous metals. However, it may not achieve the highest surface finishes compared to other methods.
2. Dry Sand Casting
In dry sand casting, the mold is baked or dried before pouring molten metal. This process strengthens the mold, allowing for higher dimensional accuracy and better surface finishes. It’s particularly useful for large or heavy castings where moisture could cause defects during pouring.
3. Resin Sand Casting (No-Bake Casting)
Resin sand casting uses chemical binders (typically resin-based) to harden the sand without moisture. This process produces strong molds capable of withstanding high pouring temperatures. Resin sand molds are ideal for high-precision castings with complex geometries and are commonly used for aluminum and iron components.
4. Shell Mold Casting
Shell mold casting involves coating a pattern with a fine sand-resin mixture that forms a thin, hard “shell” around it when heated. The shells are assembled to create the mold cavity. This process results in excellent surface quality and dimensional precision, making it suitable for small and intricate castings.
5. Vacuum Sand Casting
Vacuum-assisted sand casting uses vacuum pressure to draw molten metal into the mold cavity, minimizing gas porosity and improving the density of the final casting. It’s often used in applications that require superior mechanical properties and minimal defects.
What are the Sand Casting Processes?
The sand casting process involves several key steps, each critical to producing a high-quality casting. Below is a detailed breakdown of these stages:
1. Pattern Making
The process begins with creating a pattern a replica of the final part to be cast. Patterns can be made from wood, plastic, or metal, depending on the complexity and production volume. The pattern includes allowances for shrinkage, machining, and draft angles to ensure easy mold removal.

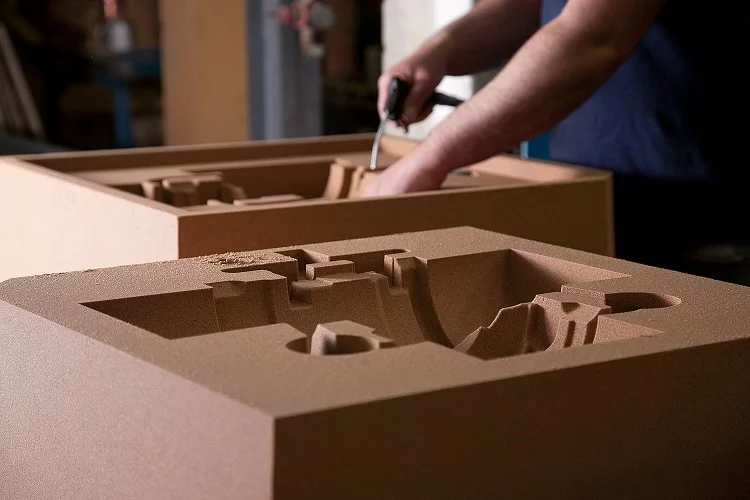

2. Mold Preparation
Next, the sand mixture is packed around the pattern inside a molding box (flask). The mold typically consists of two halves the cope (top half) and the drag (bottom half). Once packed, the pattern is carefully removed, leaving a cavity that replicates the desired shape.

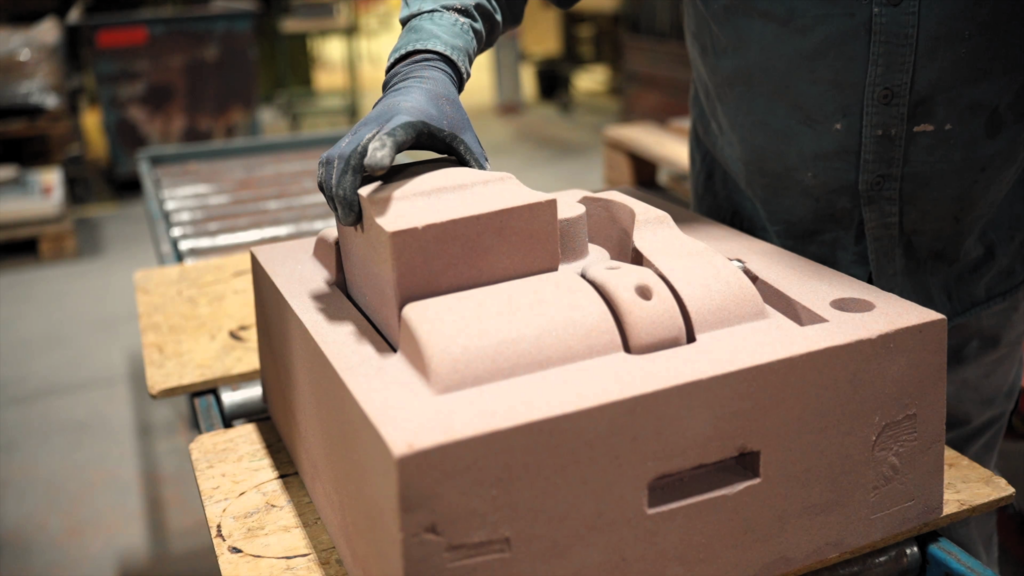

3. Core Making
If the casting requires internal cavities or hollow sections, cores made of sand are placed inside the mold. These cores maintain their shape during pouring and are later removed after solidification.
4. Mold Assembly
The cope and drag halves are aligned and clamped together. Venting and gating systems are created to allow the molten metal to flow smoothly and gases to escape. The gating system includes the sprue, runners, and risers that control the metal flow.

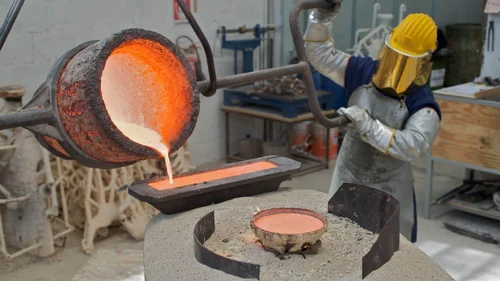

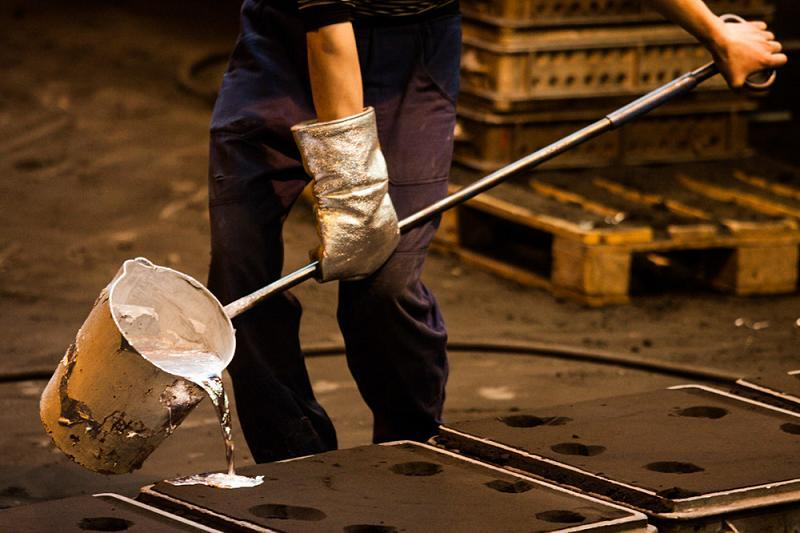

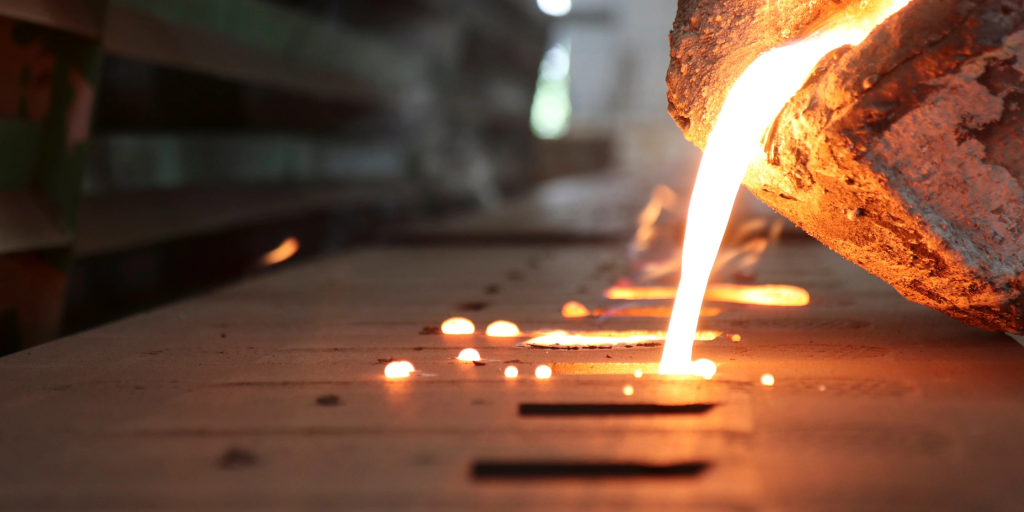

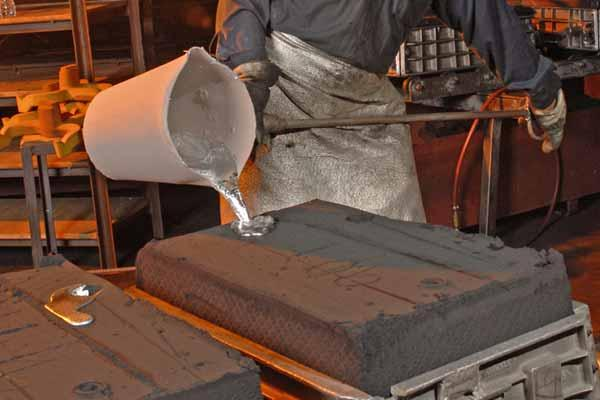

5. Pouring
Molten metal, heated to the required temperature, is carefully poured into the mold through the gating system. Proper pouring speed and temperature are essential to prevent turbulence and defects.
6. Cooling and Solidification
After pouring, the metal is left to cool and solidify inside the mold. Cooling time depends on the metal type and the casting’s size. Controlled cooling ensures uniform grain structure and mechanical properties.
7. Shakeout and Cleaning
Once cooled, the mold is broken apart to retrieve the casting — this step is called shakeout. The sand is reclaimed and reused for subsequent molds. The casting is then cleaned to remove excess sand, oxides, and gating remnants.
8. Finishing and Inspection
Finally, the casting undergoes finishing processes such as grinding, machining, or shot blasting to achieve the desired surface quality and dimensional precision. The finished part is then inspected for defects before shipping or assembly.
What are the Advantages of Sand Casting?
Sand casting offers numerous advantages that make it one of the most preferred casting methods in the industry.
1. Versatility
Sand casting can produce parts ranging from a few grams to several tons. It accommodates almost any metal, including steel, iron, aluminum, and bronze.
2. Cost-Effectiveness
The materials used in sand casting primarily sand and clay are inexpensive and reusable. The tooling costs are also lower compared to permanent mold or die casting methods.
3. Design Flexibility
Complex shapes, intricate details, and internal cavities can be achieved easily using sand casting. The process supports a wide range of geometries with minimal limitations.
4. Suitable for Low and High Volumes
Sand casting can be used for both one-off prototypes and large production runs. It’s ideal for custom manufacturing where design changes are frequent.
5. Material Conservation
Unused sand can be reclaimed and recycled for future molds, reducing material waste and production costs.
6. Wide Range of Applications
Because of its adaptability, sand casting is used in countless industries from heavy machinery and automotive engines to artistic sculptures and consumer goods.
Applications of Sand Casting
Sand casting is used to manufacture components across a broad spectrum of industries. Some of the most common applications include:
1. Automotive Industry
Many critical automotive parts such as engine blocks, cylinder heads, brake drums, and gear housings are produced through sand casting. The process allows manufacturers to achieve strong and heat-resistant parts at an economical cost.
2. Aerospace and Defense
In aerospace and defense applications, sand casting is used for components like turbine housings, structural frames, and valve bodies. The ability to produce complex geometries makes it indispensable for performance-critical parts.
3. Industrial Machinery
Heavy machinery, pumps, compressors, and gearboxes often rely on sand-cast parts for their durability and strength. These components must withstand high mechanical and thermal stresses.
4. Construction Equipment
Sand-cast metal components are found in cranes, bulldozers, and other construction machines. Their robustness and adaptability make them suitable for heavy-duty use.
5. Art and Sculpture
Beyond industrial use, sand casting is popular in art and design. Artists use it to create bronze statues, ornamental fixtures, and custom metal works.
6. Energy Sector
Sand casting plays a vital role in producing parts for wind turbines, oil rigs, and power generation systems. It provides both cost efficiency and the ability to create large-scale parts.
How to Test the Quality of Sand Casting?
Quality control is crucial in sand casting to ensure the final product meets design and performance requirements. Several tests and inspections are used to verify casting integrity.
1. Visual Inspection
The first step involves examining the casting for visible defects such as surface cracks, blowholes, or incomplete fills. This helps detect obvious flaws before proceeding to advanced testing.
2. Dimensional Inspection
Using precision measuring instruments like calipers, coordinate measuring machines (CMMs), and gauges, the dimensions of the casting are checked against design specifications.
3. Radiographic (X-ray) Testing
X-ray inspection reveals internal defects such as porosity, inclusions, or shrinkage cavities that are not visible externally. It’s a non-destructive method widely used in critical applications.
4. Ultrasonic Testing
Ultrasonic sound waves are used to detect internal flaws by analyzing the reflections produced when the waves encounter discontinuities.
5. Magnetic Particle and Dye Penetrant Testing
These methods are effective for detecting surface cracks and discontinuities. Magnetic particle testing is suitable for ferromagnetic materials, while dye penetrant testing works on non-magnetic metals.
6. Mechanical Testing
Mechanical tests such as tensile strength, hardness, and impact resistance assess the casting’s performance properties. Samples are often cut from the casting for this purpose.
7. Chemical Composition Analysis
Spectroscopic or chemical analysis ensures the metal’s composition matches the required alloy specifications, guaranteeing consistent material performance.
Where to Find a Good Sand Casting Company?
Choosing a reliable sand casting company is essential for achieving high-quality, consistent results. When selecting a supplier, consider factors such as experience, technical capabilities, equipment quality, and customer service.
If you’re looking for a trusted partner in the casting industry, Fuchun Casting is an excellent choice. The company specializes in precision sand casting, offering advanced production facilities, experienced engineers, and strict quality control processes. Fuchun Casting provides customized solutions for industries including automotive, machinery, and energy, ensuring that every product meets international standards. With years of expertise and a reputation for reliability, Fuchun Casting stands out as one of the most dependable sand casting companies globally.
Summary
Sand casting remains one of the most time-tested and adaptable methods of metal casting. Its ability to produce components of various sizes, shapes, and materials coupled with its cost-effectiveness makes it a cornerstone of modern manufacturing. From ancient foundries to cutting-edge industries, the process continues to evolve, integrating automation and quality control technologies to meet today’s demanding standards.
Understanding the types, processes, advantages, and applications of sand casting allows engineers and manufacturers to make informed decisions about material selection and production methods. Whether you’re developing large industrial machinery or small precision components, sand casting provides a reliable pathway from molten metal to finished product.
For companies seeking quality, precision, and reliability in sand casting, Fuchun Casting offers world-class expertise and service a trusted partner for turning your design visions into durable, high-performance metal components.
