Centrifugal Casting: The Ultimate Guide

Centrifugal casting is a precision metal casting method used to produce cylindrical parts with excellent structural integrity and consistent wall thickness. This guide explains what the process is, how it evolved, the types and steps involved, the benefits and common uses, quality testing methods, and how to choose a reliable supplier.

What is Centrifugal Casting?

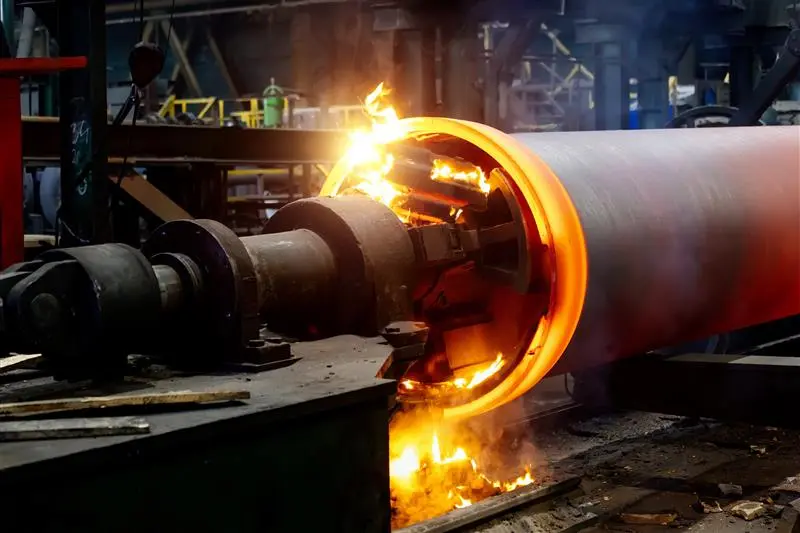

Centrifugal casting is a specialized metal casting process that uses high rotational speed to distribute molten metal inside a spinning mold. The centrifugal force pushes the molten material outward, forming a dense and uniform layer against the inner surface of the mold.

This process is commonly used to create cylindrical or symmetrical parts such as pipes, sleeves, and rings. Because the metal solidifies from the outside in, it produces an exceptionally clean and sound structure with minimal impurities.

For anyone researching centrifugal casting, the main goal is usually to find out whether the technique offers better strength, durability, and cost efficiency compared to other methods. Buyers want quick clarity on whether centrifugal casting fits their geometry, material and performance requirements.

History of Centrifugal Casting

The concept of centrifugal casting dates back to the mid-1800s when foundries discovered that rotating molds could help eliminate voids and impurities in metal castings. Early industrial uses included wheel rims and pipes where uniformity and strength were essential.

As industrial techniques improved, vertical and horizontal spinning machines were developed to handle different part shapes and sizes. Today’s foundries use controlled rotation speeds, temperature management and improved mold materials for broader applications and higher precision.

Types of Centrifugal Casting

Centrifugal casting takes a few distinct forms depending on mold orientation and the intended part geometry. Choosing the right type matters because each variant affects grain structure, impurity migration and suitability for specific part shapes.

Below are the main types and when each is typically chosen.

True Centrifugal Casting

True centrifugal casting spins a hollow mold around its central axis while molten metal is poured in, forming a uniform tubular part. This method produces smooth outer surfaces and consistent wall thicknesses ideal for long pipes and liners.

Because impurities are forced to the inner diameter, the outer functional surface tends to be defect-free and strong, making this method preferred for pressure-bearing tubes and sleeves.

Semi-Centrifugal Casting

Semi-centrifugal casting uses rotational force to densify the outer rim while the mold cavity defines the overall shape. This technique is often selected for solid, rotationally symmetric parts like wheel hubs or gear blanks where mass concentrated toward the rim improves performance.

The process combines the benefits of centrifugal densification with the ability to produce more complex outer geometries than true centrifugal casting.

Centrifuging (Multiple Cavities)

Centrifuging refers to spinning molds arranged around a central sprue so that many small parts are filled in a single pour. This approach works well for small, repetitive parts such as bushings, fittings, and jewelry components requiring consistent replication.

It’s an economical choice for high-volume small parts where the same dimensional standards must be met across many pieces.

Horizontal and Vertical Orientation

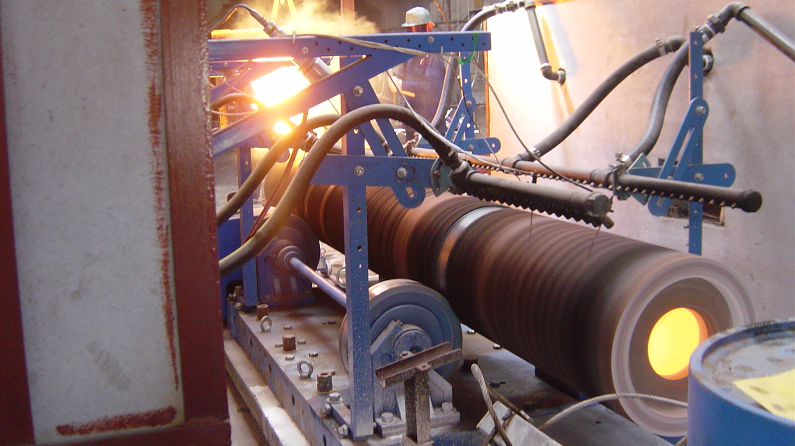

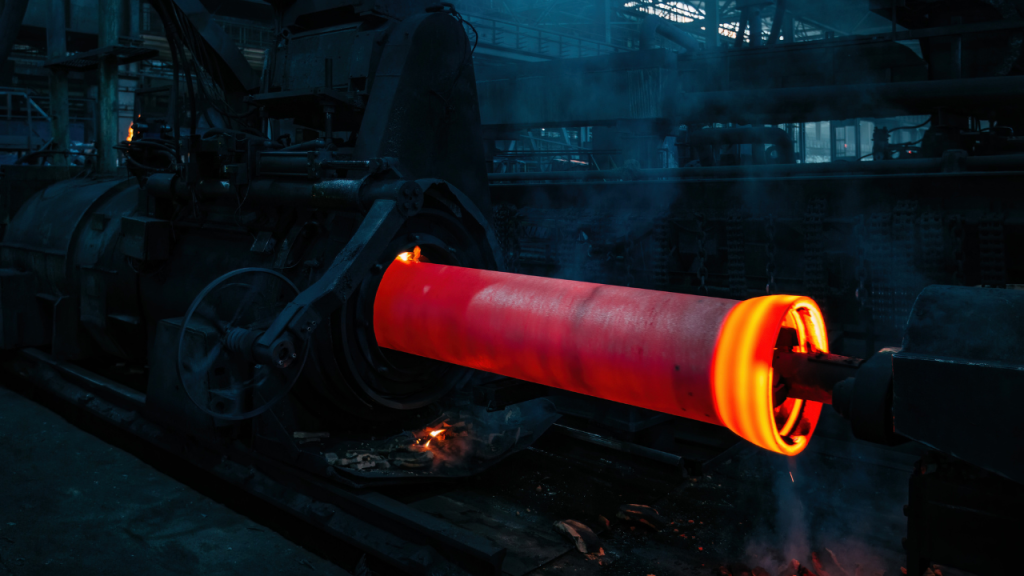

Horizontal centrifugal casting rotates molds on a horizontal axis and suits long tubes and lengthy cylindrical shapes, while vertical machines spin molds upright for shorter, thicker rings and disks. Each orientation changes how metal flows, cools and solidifies, and the choice depends on length-to-diameter ratio and structural demands.

Understanding orientation helps designers and buyers match part geometry to the casting method for minimal distortion and optimal strength.

What are the Centrifugal Casting Processes?

The centrifugal casting process follows well-defined stages, each of which affects final part quality. Clear control of mold conditions, pouring and cooling is essential to achieve the desired microstructure and dimensional accuracy.

The steps below outline a typical production cycle from mold prep to finished part.

Mold Preparation

The mold is cleaned, inspected and often preheated to reduce thermal shock and improve metal flow. A thin refractory or release coating may be applied to facilitate removal and protect the mold surface.

Preparing the mold properly helps control solidification rates and reduces defects caused by temperature variation during pouring.

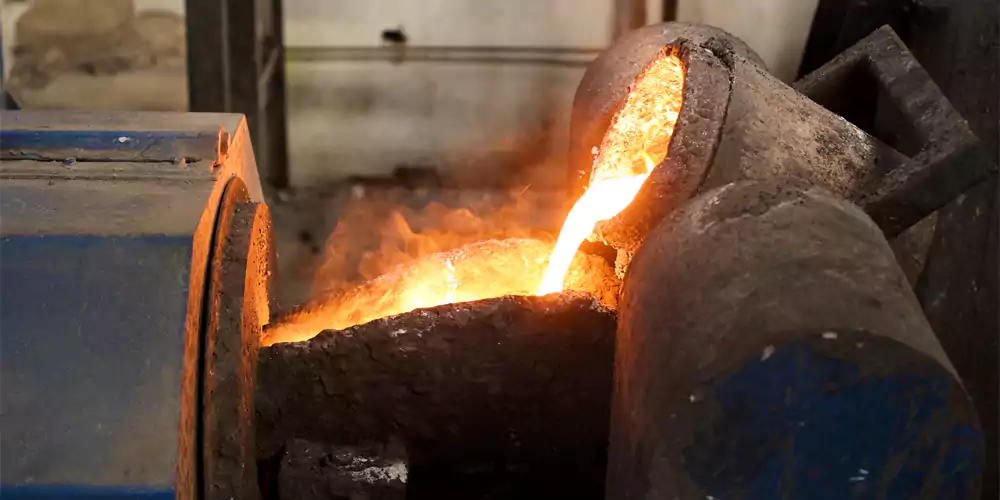

Rotation and Pouring

The mold spins at a predetermined speed and molten metal is poured into the center or feed system. Centrifugal force pushes the metal outward to fill the mold cavity and conform to the mold’s inner surface.

Rotation speed is calculated based on part diameter, wall thickness and alloy properties to ensure uniform distribution and avoid casting instabilities.

Solidification and Cooling

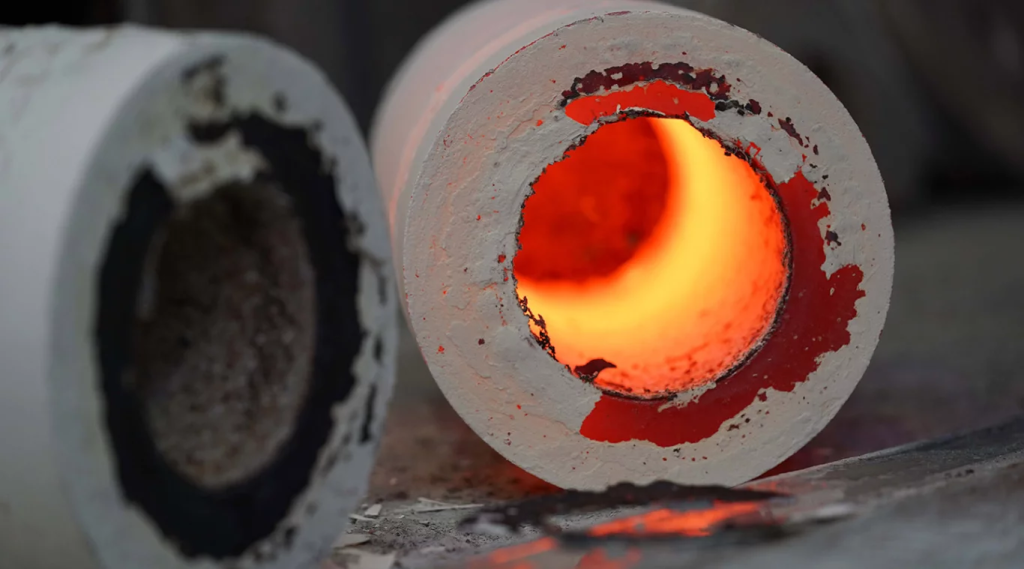

Solidification proceeds from the outer mold wall inward, producing a dense outer layer and collecting lighter impurities near the bore. Controlled cooling, sometimes assisted by mold cooling systems, helps refine grain size and reduce residual stress.

After the casting has sufficiently solidified, the mold is stopped and the part is removed for further processing.

Machining and Finishing

The inner surface, where impurities concentrate, is commonly machined to reach the final internal dimension and surface finish. Additional steps such as heat treatment, stress relieving and surface grinding may follow to meet mechanical and geometric specifications.

These finishing operations ensure the cast piece meets functional tolerances and longevity expectations.

Quality Control Throughout Production

Critical variables including mold speed, pour temperature, and cooling rate are monitored during production. Process records and statistical control help maintain repeatability across batches for consistent part quality.

A supplier’s ability to control these parameters is a strong indicator of their capability to deliver reliable centrifugal castings.

What are the Advantages of Centrifugal Casting?

Centrifugal casting provides many advantages that appeal to designers and purchasers who need durable, high-integrity cylindrical components. Each advantage ties directly to how the process shapes material during solidification.

Below are the key benefits commonly sought by customers.

Superior Structural Integrity

High centrifugal force compacts the molten metal against the mold wall, reducing gas entrapment and shrinkage defects. The outer functional wall therefore tends to be denser and stronger than comparable static castings.

This integrity results in parts that endure higher mechanical loads and last longer in service.

High Purity and Minimal Inclusions

During the spin and solidification sequence, lighter impurities are driven toward the inner surface and can be removed during machining. The natural separation reduces the incidence of embedded inclusions in load-bearing regions.

This makes centrifugal castings particularly suitable for pressure vessels, bearing surfaces and high-stress rotating parts.

Improved Mechanical Properties

Rapid, controlled cooling at the mold wall refines microstructure and improves tensile strength, toughness and fatigue resistance. The result is a part with mechanical behavior that often rivals forged or wrought components in many applications.

Designers choose centrifugal cast parts when a favorable strength-to-cost balance is needed.

Directional Solidification Control

Because solidification starts at the outer diameter and moves inward, directional solidification minimizes internal stress and promotes predictable shrinkage patterns. This control reduces random porosity and allows tight control over wall thickness.

Consistent directional solidification simplifies subsequent machining and inspection steps.

Cost Efficiency

For cylindrical parts, centrifugal casting eliminates intricate cores and many gating systems, lowering tooling complexity and material waste. For mid- to high-volume production of tubes and rings, the method often becomes more economical than machining from solid or using other casting methods.

Savings come from reduced scrap, simpler tooling and efficient material use.

Material Versatility and Bimetallic Options

Centrifugal casting accommodates a wide spectrum of alloys including iron, steel, bronze, copper, aluminum and nickel-based materials. It also enables bimetallic castings where different materials form inner and outer layers to combine corrosion resistance with strength.

This versatility allows tailored material solutions to meet application-specific requirements.

Superior Outer Surface and Dimensional Accuracy

The outer surface of the casting is formed directly against the mold and is often smooth and near-final in dimension. This reduces the amount of post-cast machining required and supports consistent repeatability across production runs.

Good surface quality minimizes finishing costs and helps parts meet tight tolerances quickly.

Applications of Centrifugal Casting

Centrifugal casting’s strengths make it useful across many industries where cylindrical parts must handle pressure, wear, or rotation. The following sections break down common industry uses and why the process is chosen for each.

Automotive Industry

In automotive manufacturing, centrifugal casting produces cylinder liners, brake drums, bushings, and bearing sleeves. These components require uniform wall thickness, excellent wear resistance, and consistent dimensional control to maintain engine performance and longevity.

Manufacturers rely on centrifugally cast parts when service life and heat resistance are priorities.

Oil, Gas, and Energy

Pipes, tubing, and pressure-bearing sleeves used in oil and gas applications must withstand high pressure and corrosive environments. Centrifugal casting offers dense, defect-free tubes and liners that perform reliably under these demanding conditions.

Power generation equipment also benefits from centrifugally cast rings, bushings and turbine components where material integrity is critical.

Marine and Shipbuilding

Propeller hubs, shaft sleeves and large-diameter bushings used in marine environments demand corrosion resistance and high fatigue strength. Centrifugal casting can produce large, durable components capable of withstanding saltwater corrosion and continuous mechanical loads.

The process supports the manufacture of heavy-duty parts essential to ship propulsion and marine machinery.

Aerospace and Defense

Aerospace components such as turbine rings and structural connectors require a high strength-to-weight ratio and consistent microstructure. Centrifugal cast parts meet stringent performance standards and are used where reliability and precision are essential in extreme conditions.

The technique helps maintain safety margins and performance reliability in critical flight and defense systems.

Industrial Machinery and Manufacturing Equipment

Bushings, rollers and impellers for industrial equipment face continual wear and must retain geometry over long service periods. Centrifugal casting produces durable, wear-resistant parts that reduce downtime and maintenance costs for heavy machinery.

Its adaptability makes it a top choice for replacement parts and bespoke industrial components.

How to Test the Quality of Centrifugal Casting?

Verifying the quality of centrifugal castings requires a combination of inspections and tests that collectively ensure structural integrity and dimensional compliance. A reputable foundry will provide documented results from these checks.

Here are the standard test approaches buyers should expect.

Visual and Dimensional Inspection

After removal from the mold, castings are visually examined for surface defects, cracks, or gross porosity. Dimensional checks assess wall thickness, roundness and straightness to ensure parts meet drawing specifications.

These routine inspections are the first line of quality control.

Non-Destructive Testing (NDT)

Ultrasonic testing, radiography, and dye-penetrant inspection are commonly used to detect internal flaws or surface-breaking defects. NDT methods provide confidence in internal integrity without damaging the part.

NDT results are often required for safety-critical applications and supply chain traceability.

Mechanical Testing

Tensile, hardness and impact tests validate that the casting’s mechanical properties match design requirements. Test samples or representative coupons provide quantitative proof of strength, ductility and toughness.

Mechanical testing helps confirm the process delivered the expected performance characteristics.

Metallurgical Examination

Microscopic analysis of grain structure and phase distribution confirms proper directional solidification and alloy homogeneity. Chemical analysis verifies that the composition is within specification and that any bimetallic interfaces are sound.

These analyses demonstrate the metallurgical quality underpinning the part’s durability.

Final Machining and Verification

Inner surfaces are machined to remove segregated impurities and to reach final dimensional tolerances. A final verification inspection confirms that machining achieved specified diameters and finishes prior to delivery.

Comprehensive testing and verification provide the assurance required for critical applications.

Where to Find a Good Centrifugal Casting Company?

Selecting the right casting partner depends on equipment, process control, material expertise and quality systems. A strong vendor not only delivers parts but also partners with you on material selection, tolerances and lifecycle expectations.

One reliable option to consider is Fuchun Casting, which offers centrifugal casting services and has a track record of producing precision tubular and rotational castings. Review project examples, testing documentation and materials capability to confirm fit.

When evaluating suppliers, check for modern horizontal and vertical casting machinery, on-site finishing and NDT capabilities, and documented quality management such as production records and inspection reports. Also prioritize clear communication, reference projects in your industry, and the willingness to provide sample castings or trials that demonstrate competence.

A supplier that can discuss process parameters, control plans and expected mechanical outcomes will be easier to integrate into product development and manufacturing schedules.

Summary

Centrifugal casting is a proven and versatile manufacturing method for producing high-integrity cylindrical parts with consistent wall thickness and superior mechanical properties. Its directional solidification and centrifugal refinement reduce defects and create parts suitable for demanding applications across many industries.

Understanding the types of centrifugal casting, the detailed process steps, the advantages and the appropriate testing regimes helps buyers specify parts that meet performance and cost goals. When sourcing a supplier, prioritize experience, equipment capability, comprehensive testing and transparent communication.

If you need help assessing whether centrifugal casting is right for your component or want to review potential suppliers, including Fuchun Casting, working with an experienced partner will shorten development cycles and improve final part reliability.
